DWM42

Double Wide Metered Power Distribution Pedestals



MEASUREMENTS

  • Pedestal Enclosure Sits 42’’ tall x 36’’ wide x 20’’ deep.

FEATURES

Larger width allows for a multitude of custom configurations. Can be included with distribution panels up to 200A. 3 Phase distribution panels also available.

  • Complete with 2” PVC conduits for Line and Load Side conductors and a ground wire to bond the Neutral.

  • Delivered “Ready to Install” with a Service Entrance rating, 22kA I.C. series rating, and ESA approval.

  • Hardware to fasten pedestal to pre-cast concrete base is included with every pedestal (base available from many pre-cast concrete manufacturers).

CONSTRUCTION

Constructed from heavy-gauge aluminum.

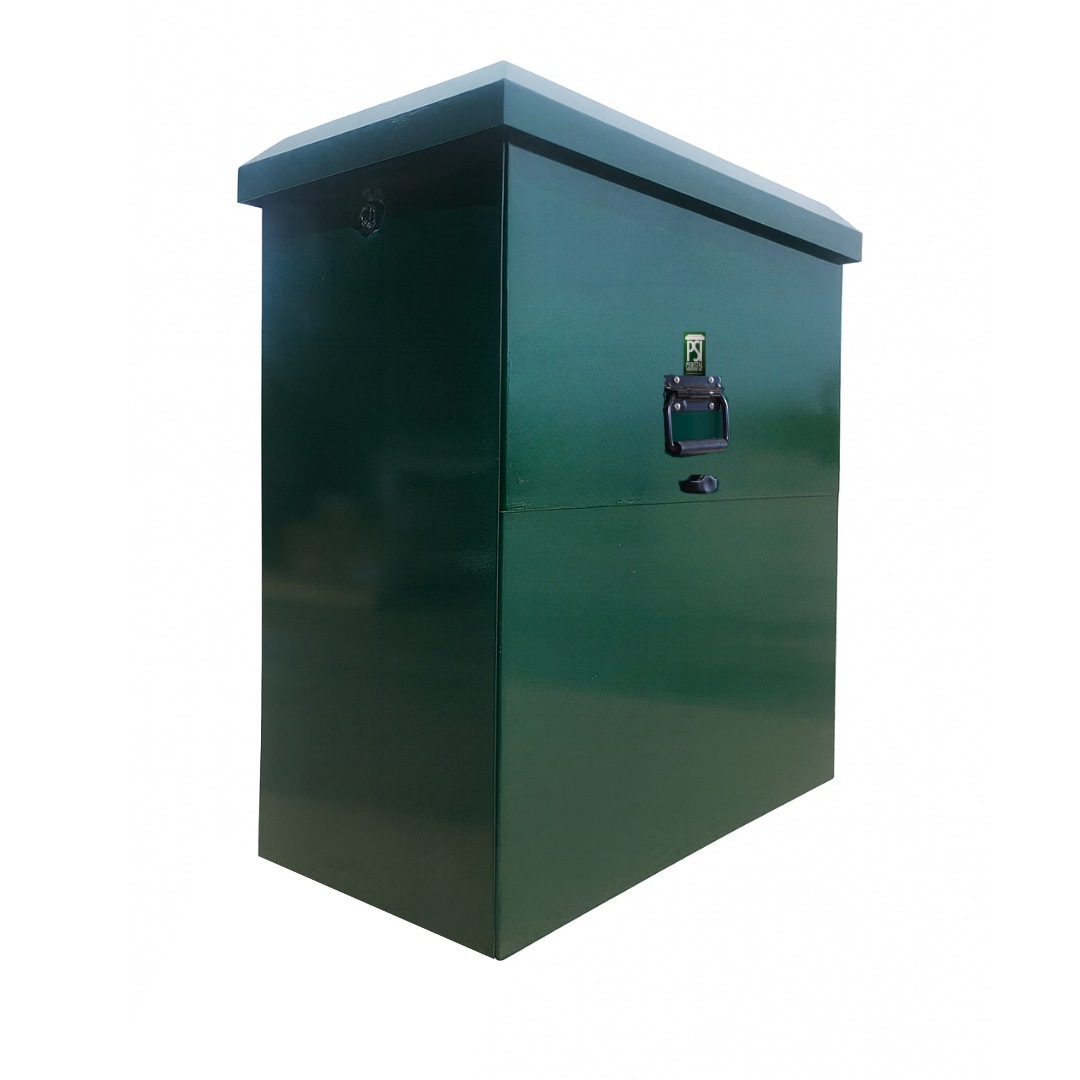

  • Electrostatic powder coated “Equipment Green” as standard.

  • All doors constructed to prevent weather intrusion without the means of a rubber gasket.

  • Concealed Ventilation under lid to prevent condensation build-up.

  • Stainless Steel fasteners used to mount all internal and external components.

CUSTOMIZATION

Can be designed to include timers, contractors, photocells etc. for any type of motor and lighting control.

  • Custom colours available

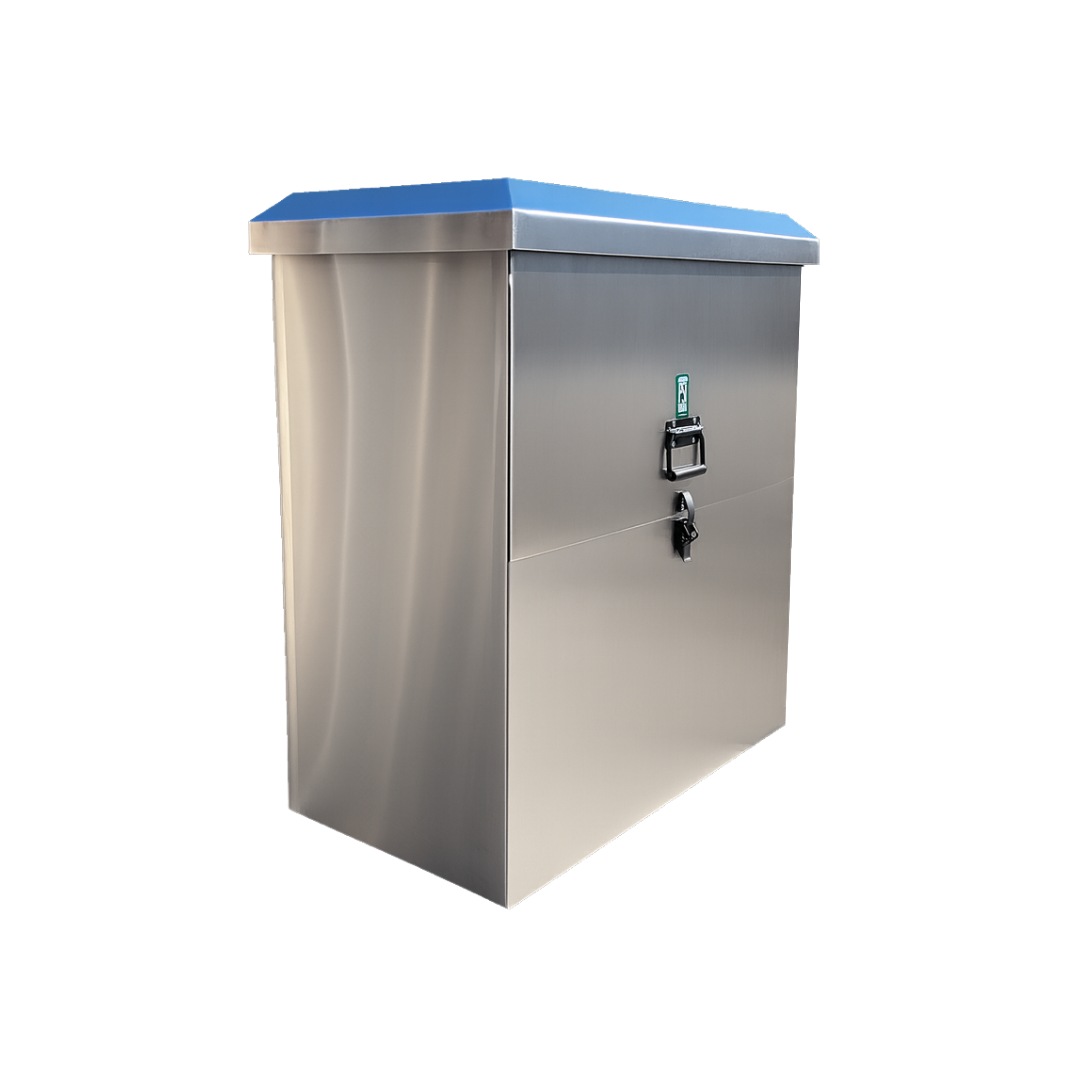

  • Also available in Galvanized or Stainless Steel construction

TYPICAL USES

  • Specializes in multi-uses. Can distribute metered and un-metered power, well still being service entrance rated.

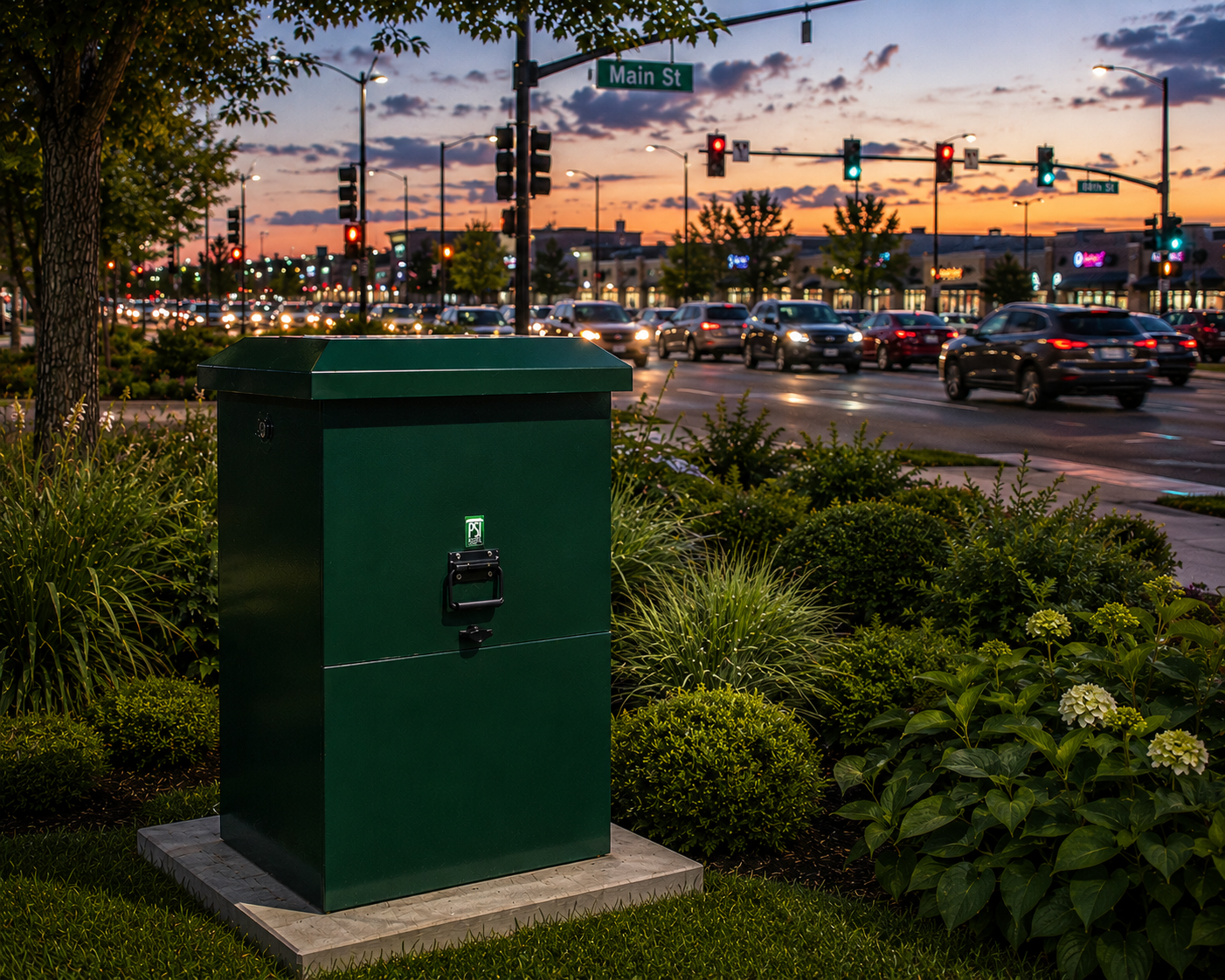

  • Street Lighting Power Distribution and Control, Metered

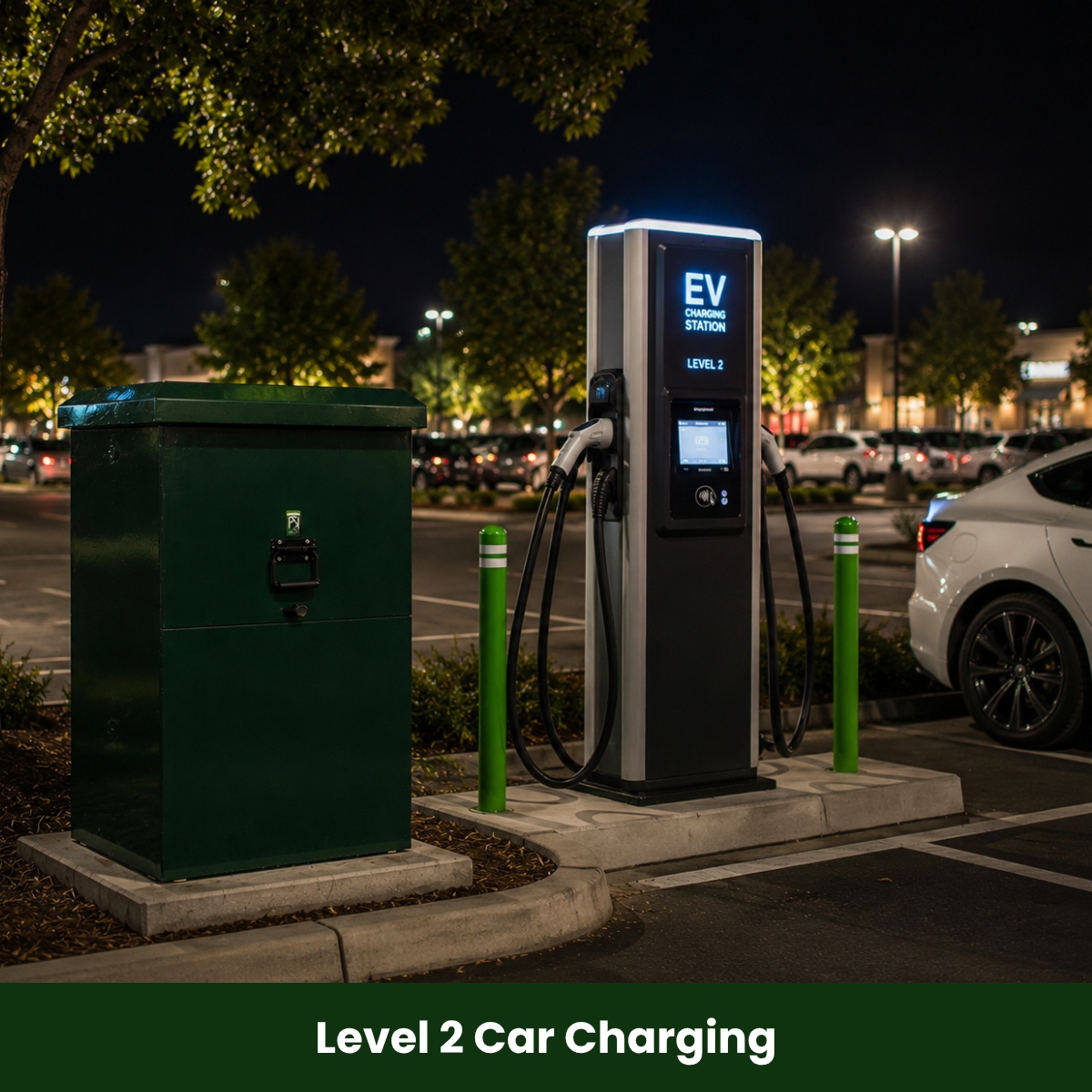

  • Electric Car Charging Power Distribution and Control, Metered

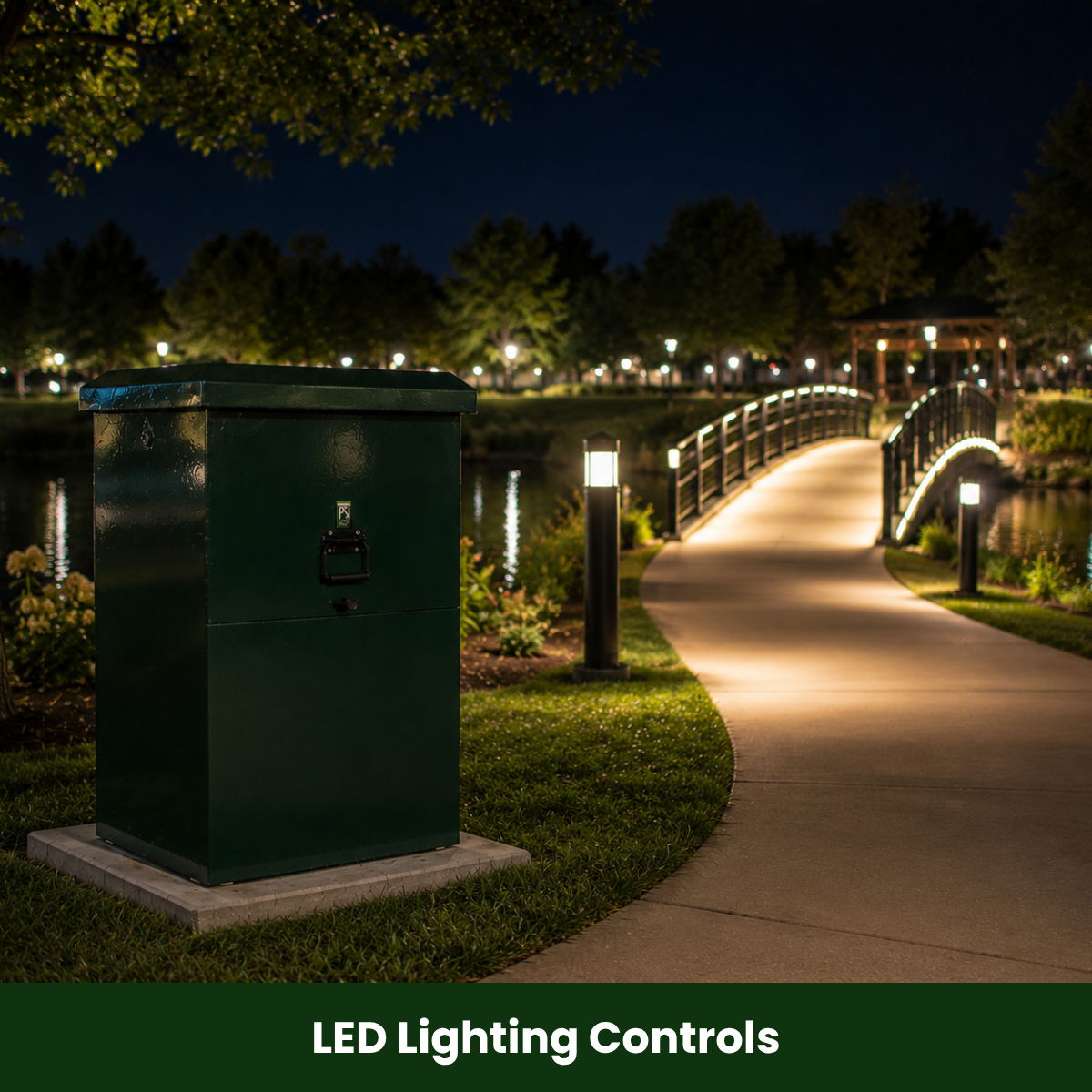

  • LED Lighting Controls, Metered

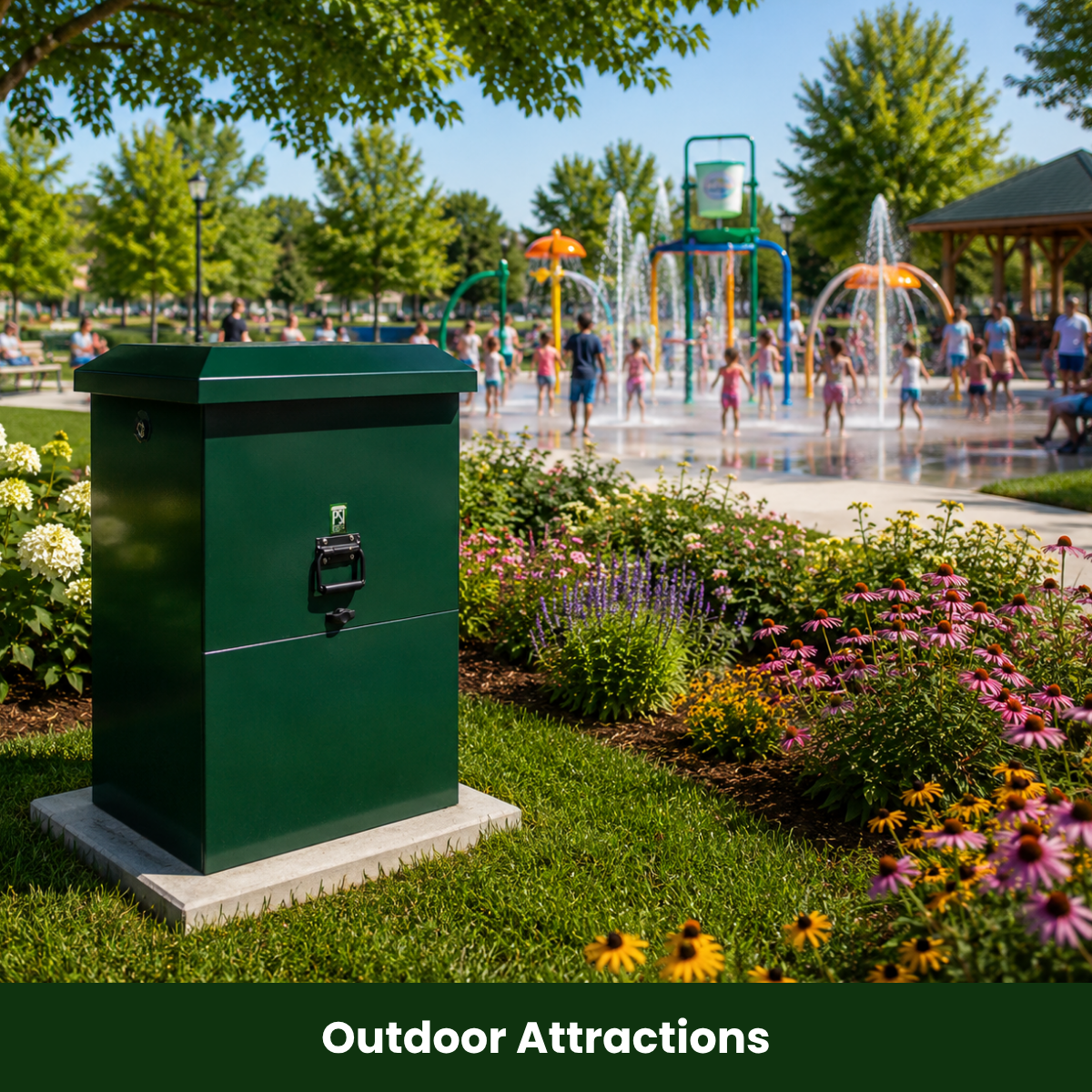

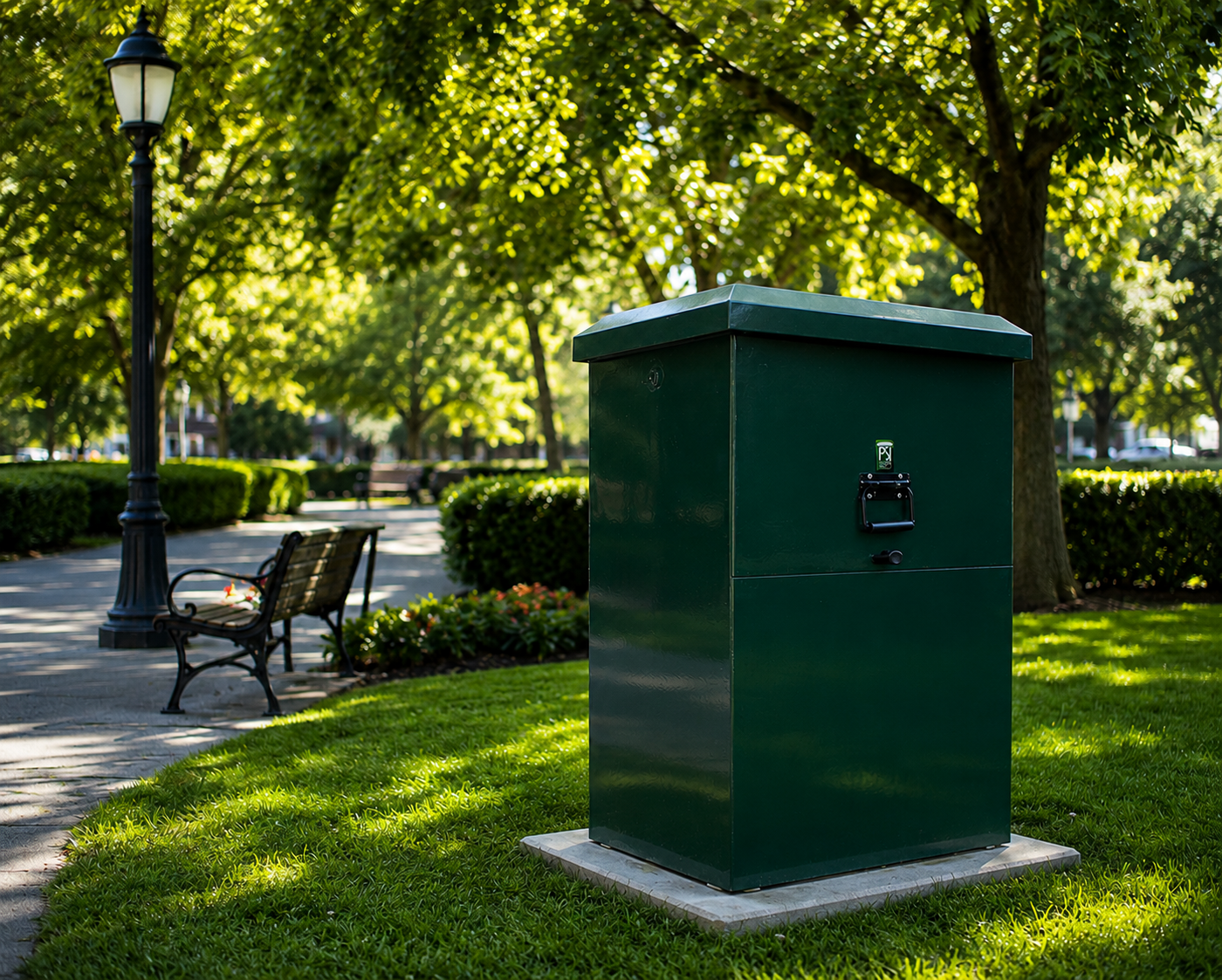

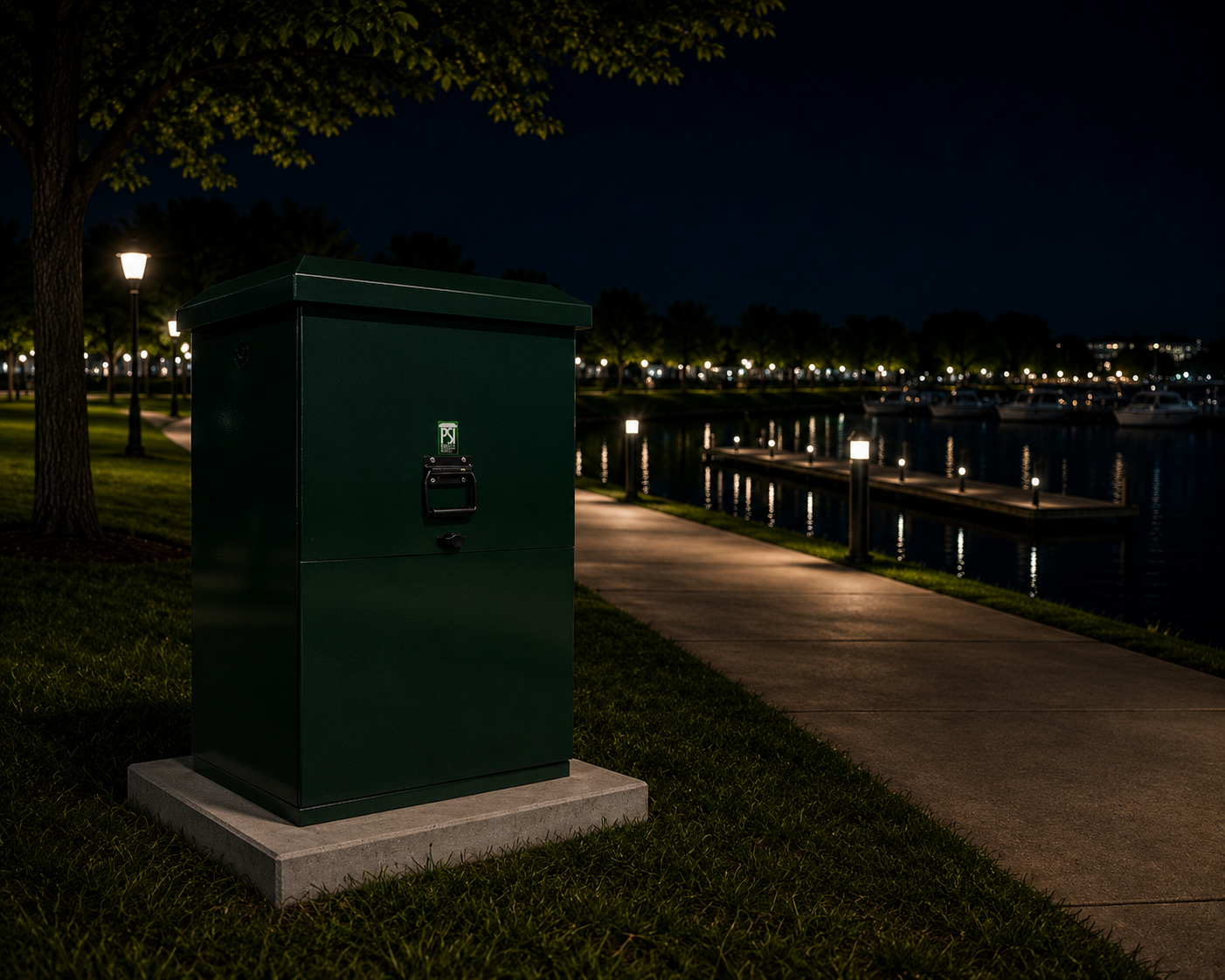

  • Parks Power Distribution and Control, Metered

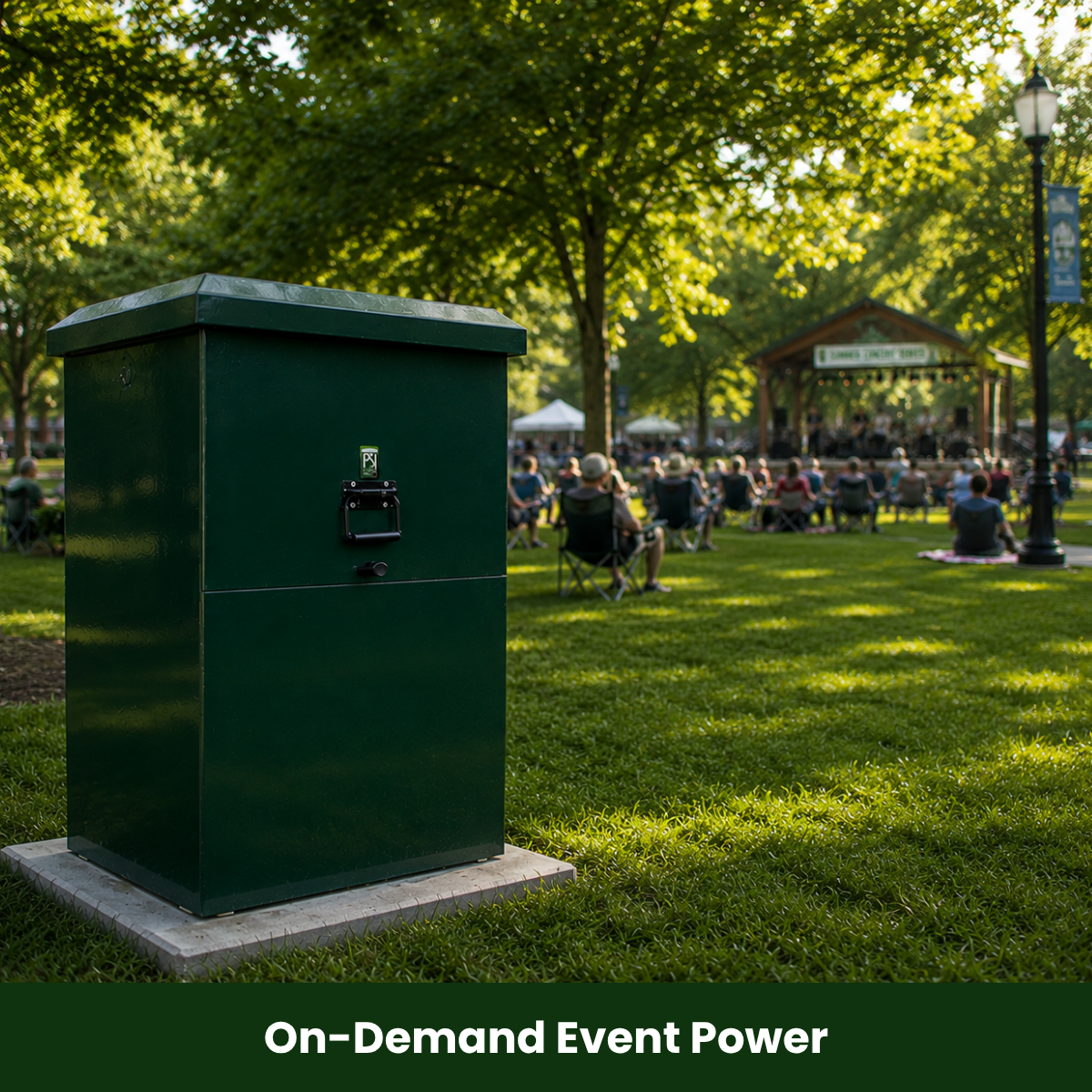

  • Event Pedestal Power Distribution and Control, Metered
