Close-up of SL1-50 Handhole Breaker with single-pole 50A configuration, designed for in-pole installation—Pedestal Solutions Inc.

HHB -

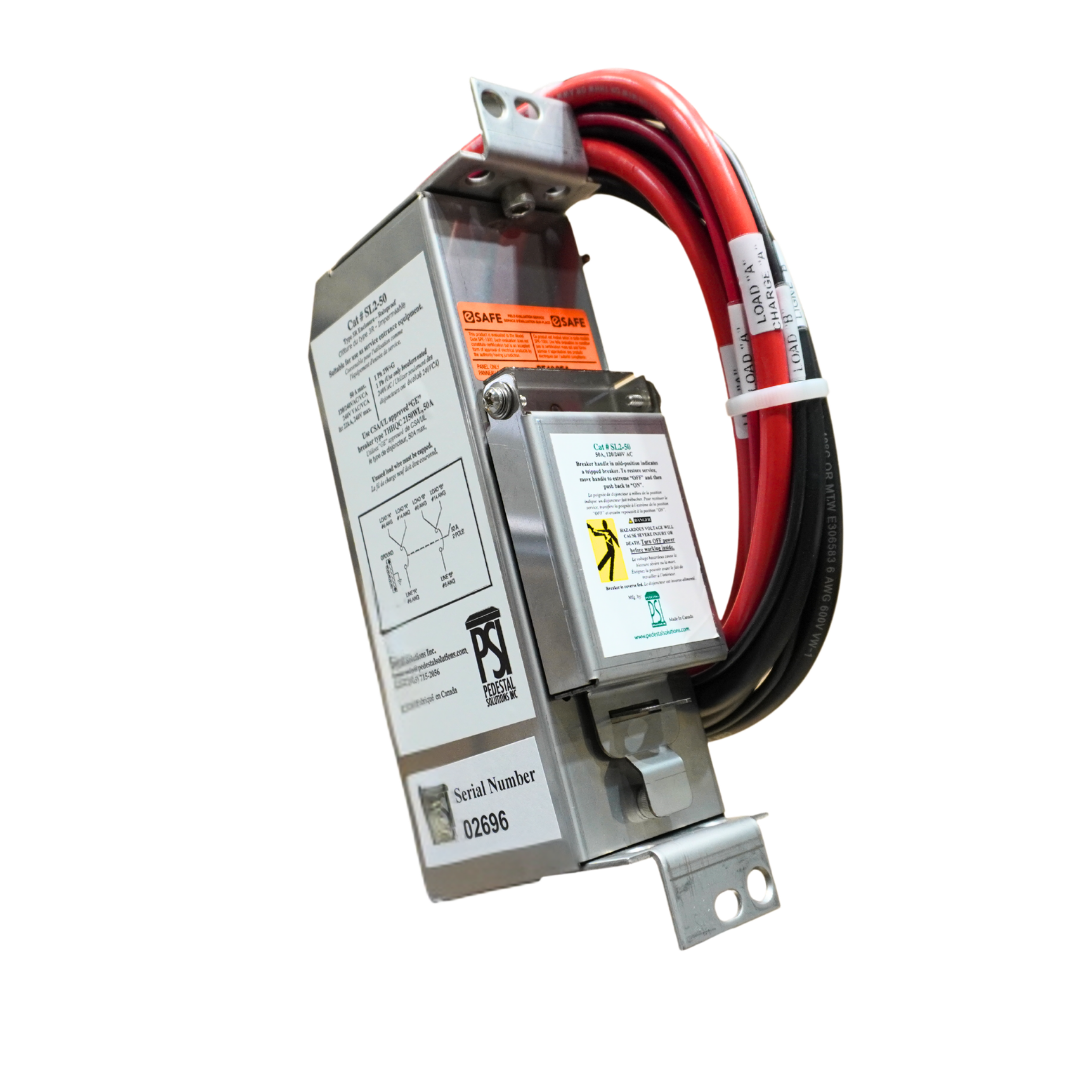

Hand Hole Circuit Breaker

Also known as; In pole breaker, In pole street light breaker.


MEASUREMENTS

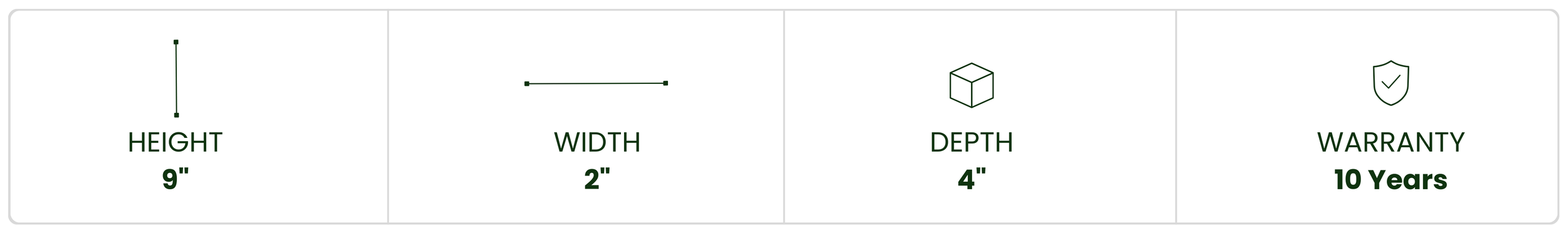

  • Enclosure is 9’’ tall x 2’’ wide x 4’’ deep.



FEATURES

  • Fits into most concrete and steel lighting poles’ hand hole.

  • Service entrance rated.

  • Completely pre-wired.

  • ESA Approved.

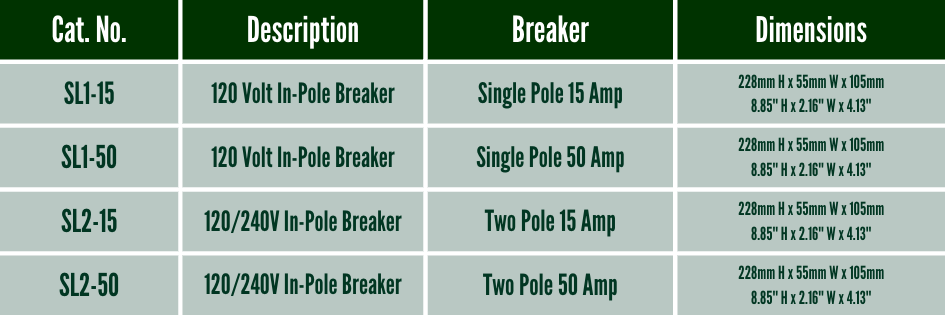

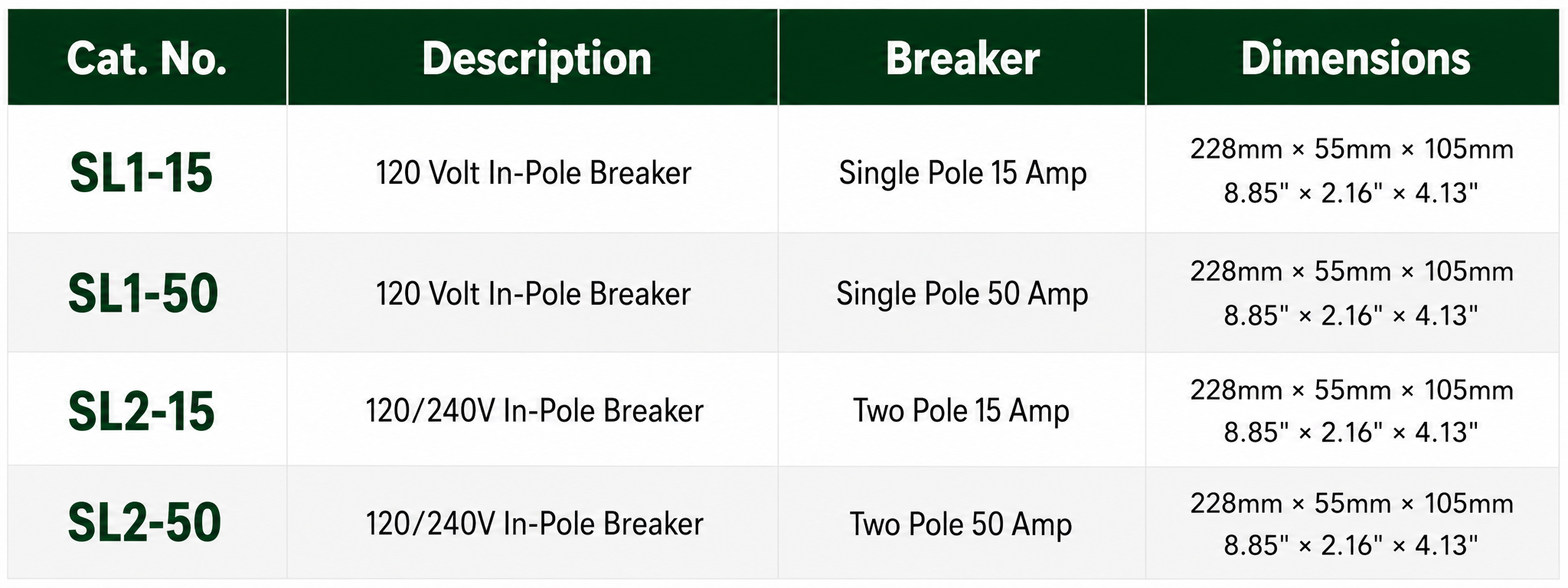

  • Single pole or 2-pole, 15A or 50A, 22kA I.C. rated versions.


CONSTRUCTION

  • #6 AWG line and load conductors on 50A units

  • #10 AWG line and load conductors on 15A units.

  • #14 AWG load conductor for feeding the light.
