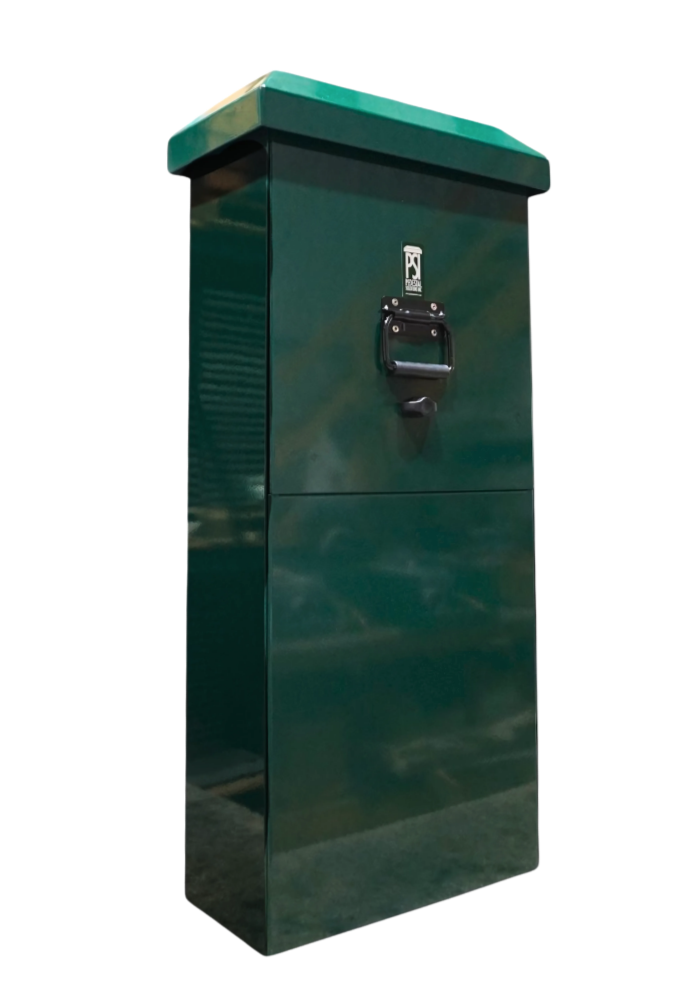

SL42

Power Distribution Pedestals



MEASUREMENTS

  • Pedestal Enclosure Sits 42’’ tall x 18’’ wide x 8’’ deep.

FEATURES

Typically included with a 12 cct. 120/240V Distribution panel with a 60A or 100A, 2 Pole main breaker and any combination of 1 and 2 pole load breakers required.

  • Pedestal Enclosure Sits 42’’ tall x 18’’ wide x 8’’ deep.

  • Complete with 2” PVC conduits for Line and Load Side conductors and a ground wire to bond the Neutral.

  • Delivered “Ready to Install” with a Service Entrance rating, 22kA I.C. series rating, and ESA approval.

  • Hardware to fasten pedestal to pre-cast concrete base is included with every pedestal (base available from many pre-cast concrete manufacturers).

CONSTRUCTION

Constructed from heavy-gauge aluminum.

  • Electrostatic powder coated “Equipment Green” as standard.

  • All doors constructed to prevent weather intrusion without the means of a rubber gasket.

  • Concealed Ventilation under lid to prevent condensation build-up.

  • Stainless Steel fasteners used to mount all internal and external components.

CUSTOMIZATION

Can be designed to include timers, contractors, photocells etc. for any type of motor and lighting control.

  • Custom colours available

  • Also available in Galvanized or Stainless Steel construction

TYPICAL USES

  • Commercial

  • Municipal

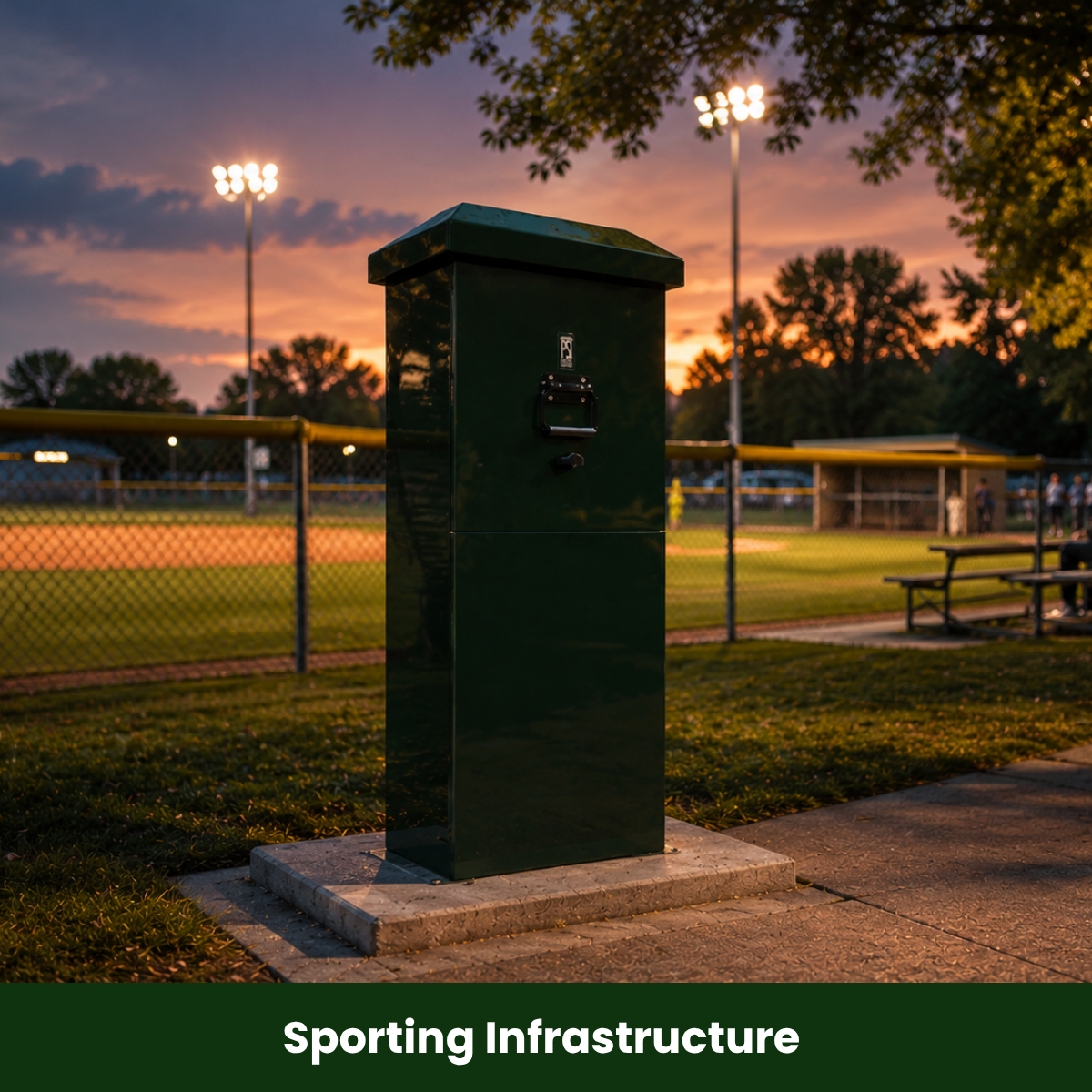

  • Park/Campground

  • Marina

  • Agricultural

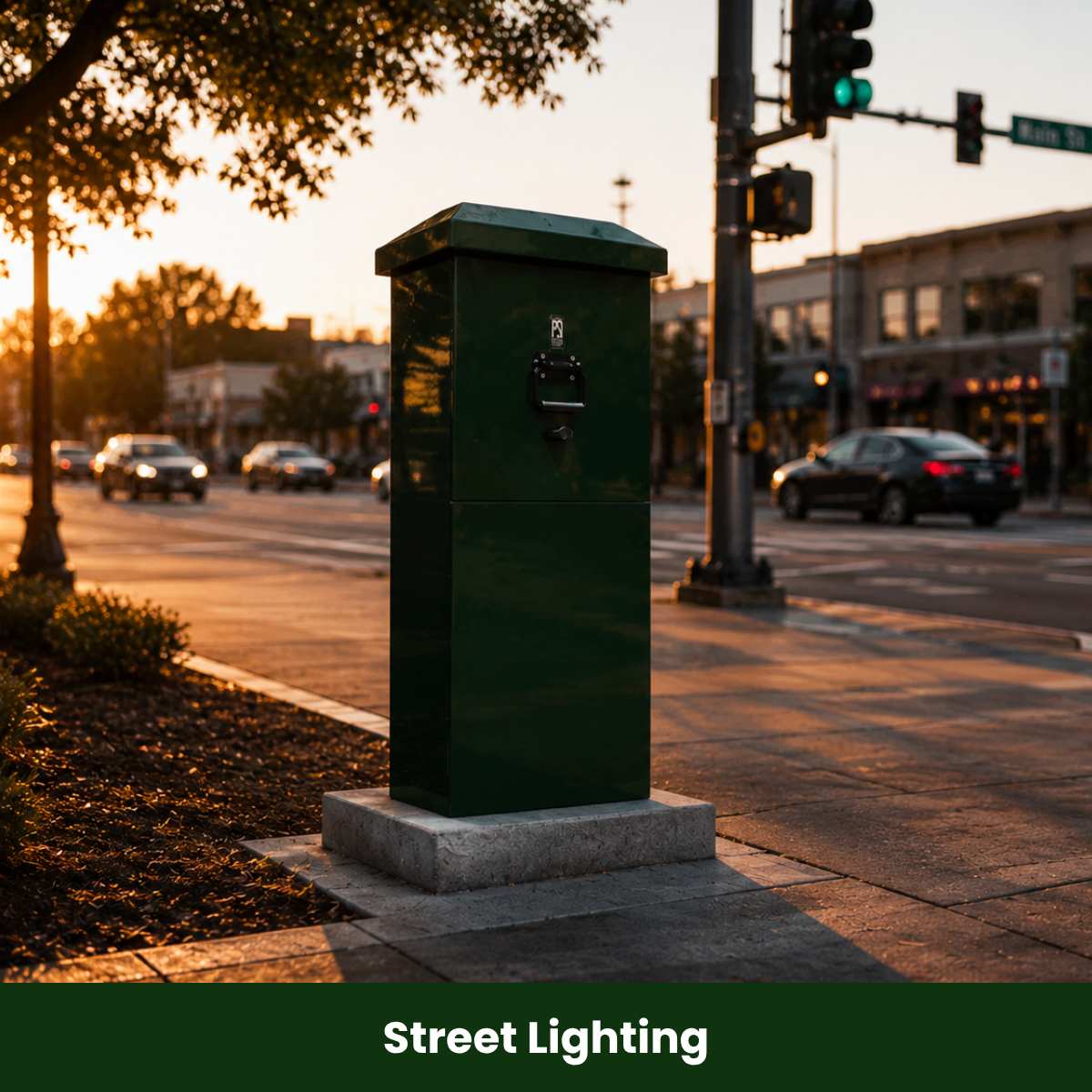

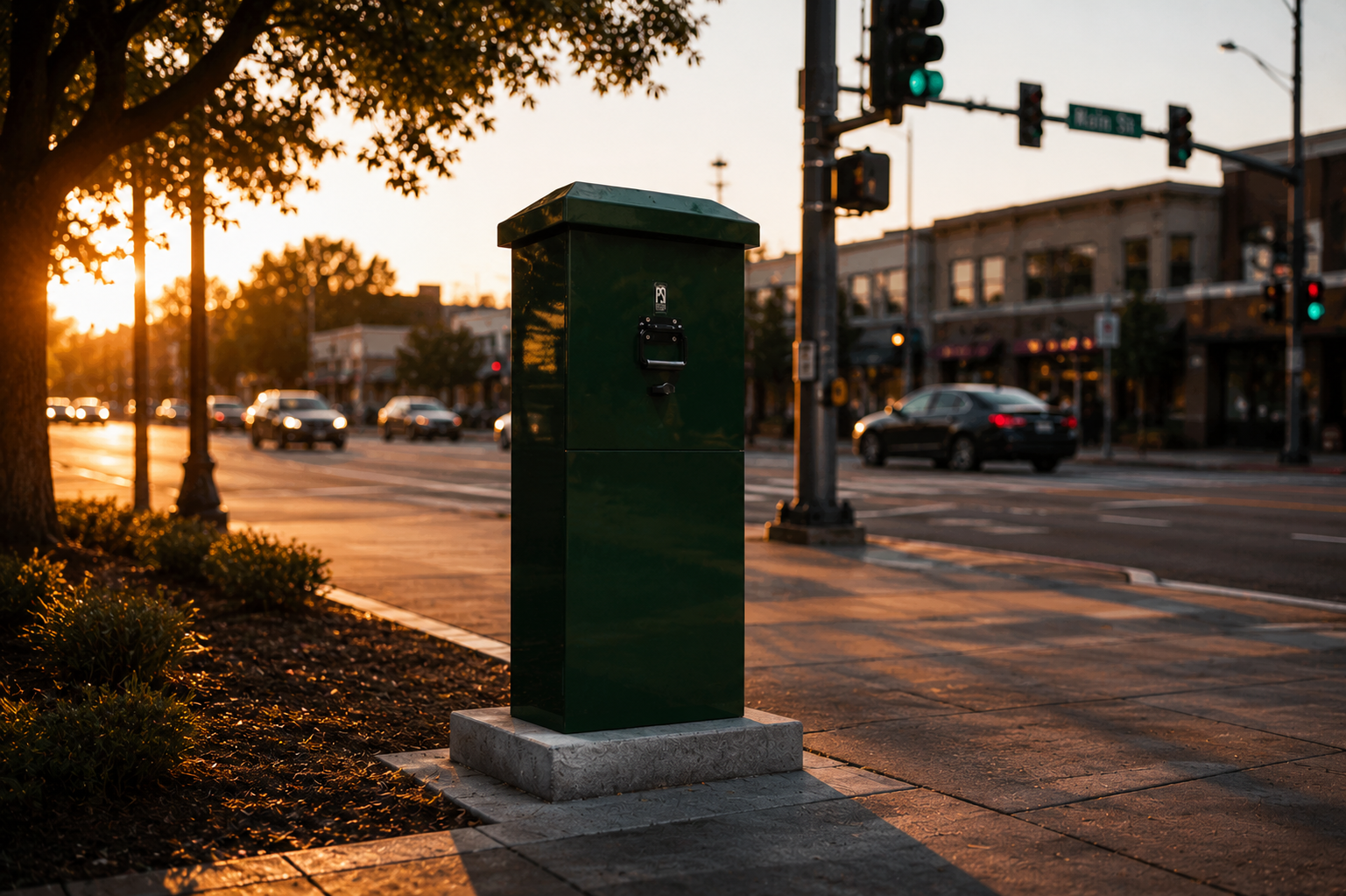

  • Street Lighting Power Distribution

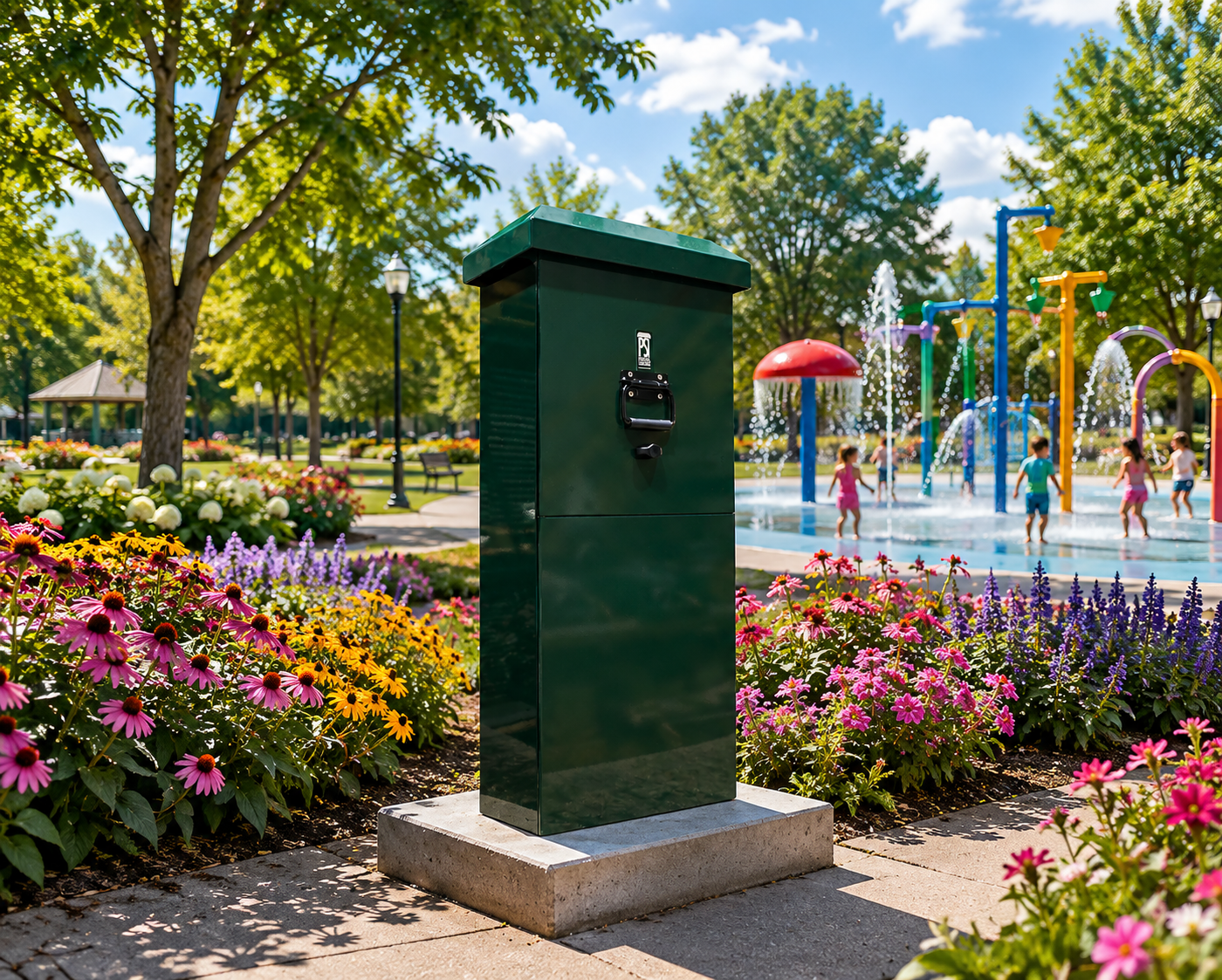

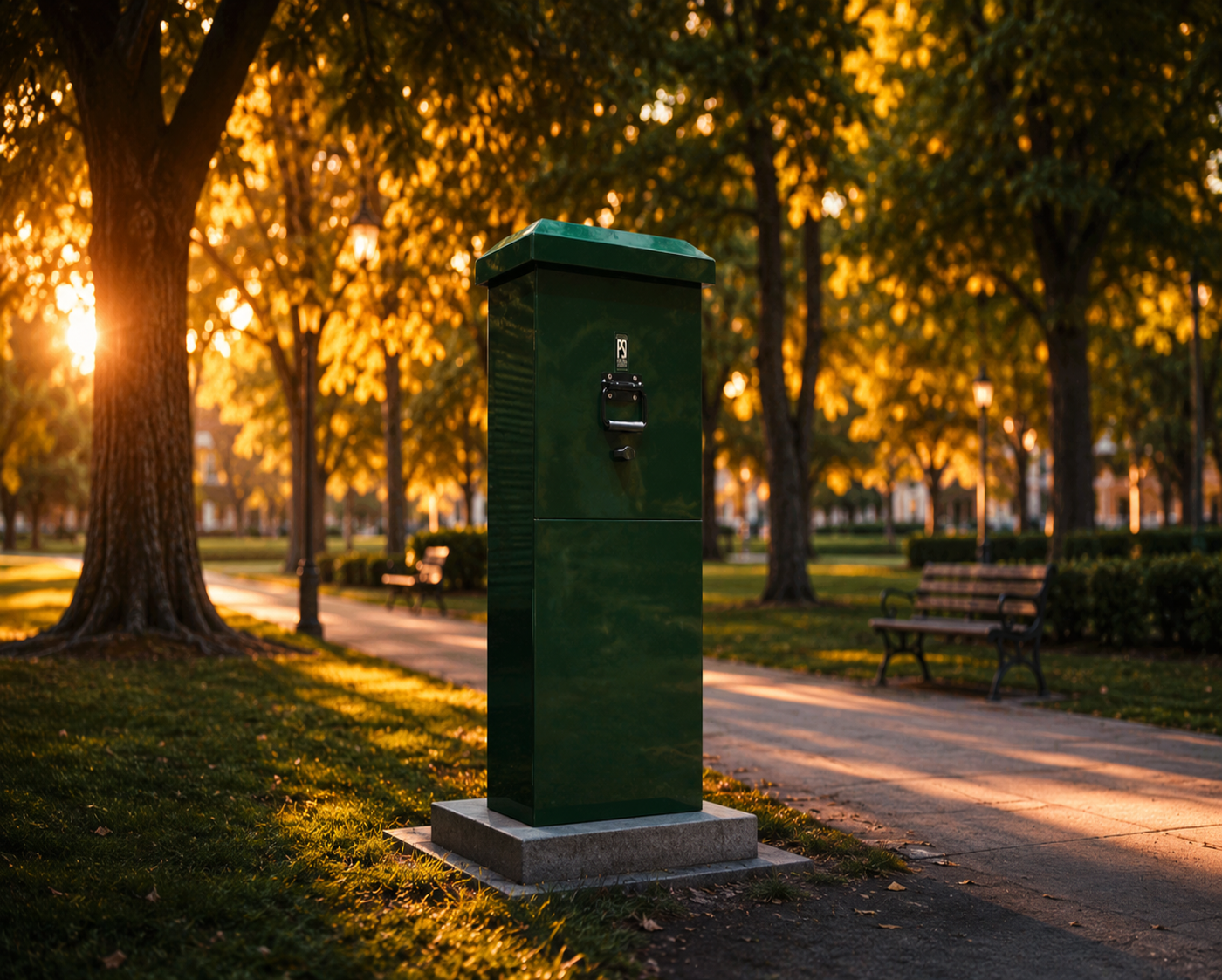

  • Parks Power Distribution

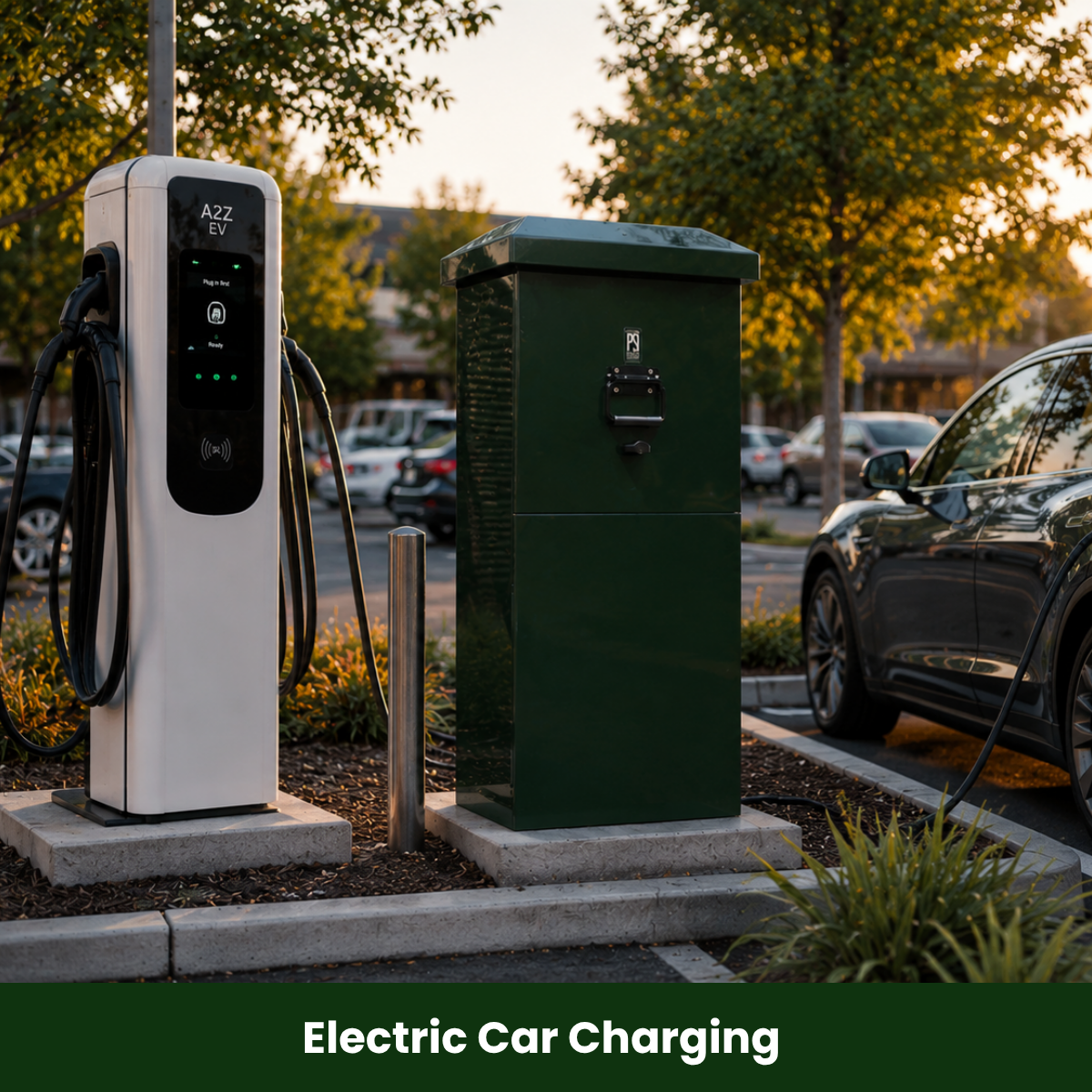

  • Electric Car Charging Power Distribution

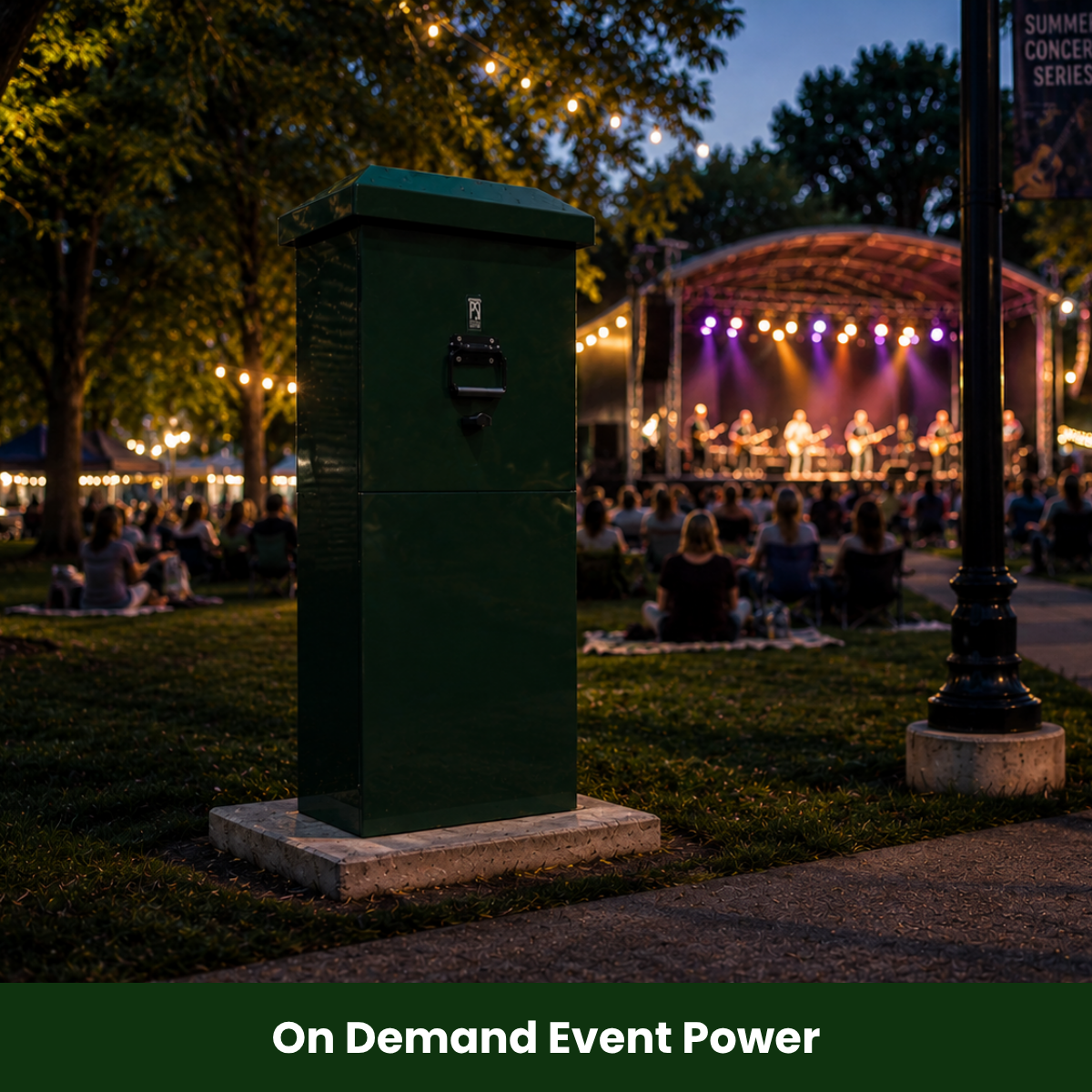

  • Event Pedestal Power Distribution
