MEASUREMENTS

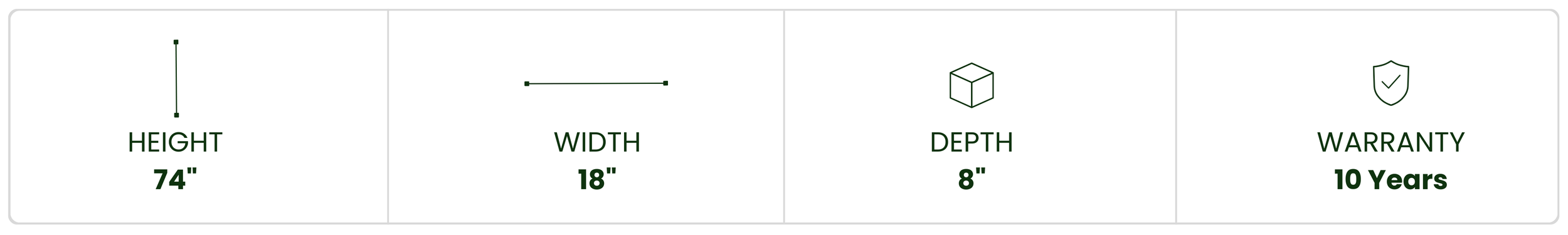

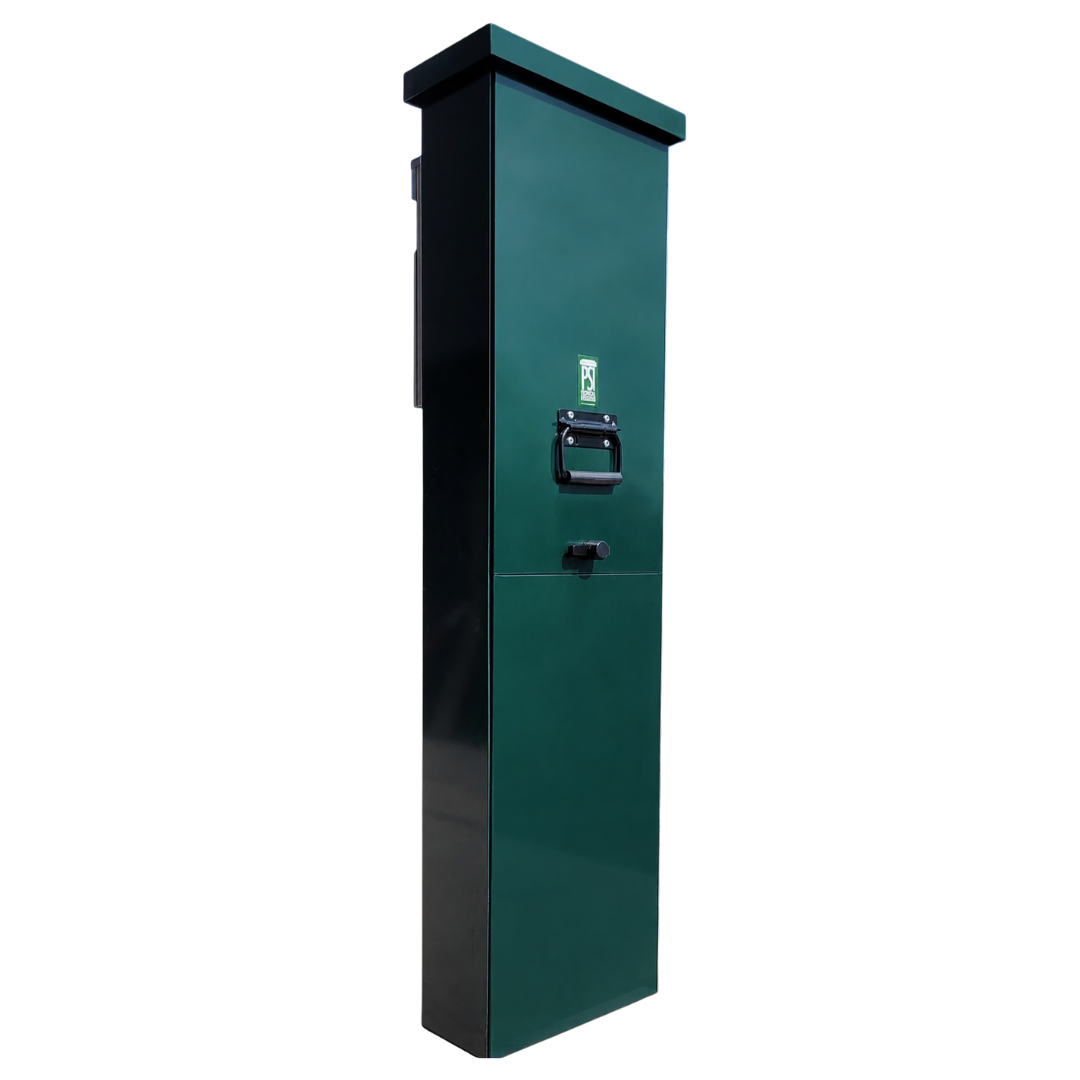

• Pedestal Enclosure Sits 74’’ tall x 18’’ wide x 8’’ deep.

FEATURES

Typically included with a 12 cct. 120/240V Distribution panel with a 60A, 100A, or up to 200A. 2 Pole main breaker and any combination of 1 and 2 pole load breakers required.

• Complete with 2” PVC conduits for Line and Load Side conductors and a ground wire to bond the Neutral.

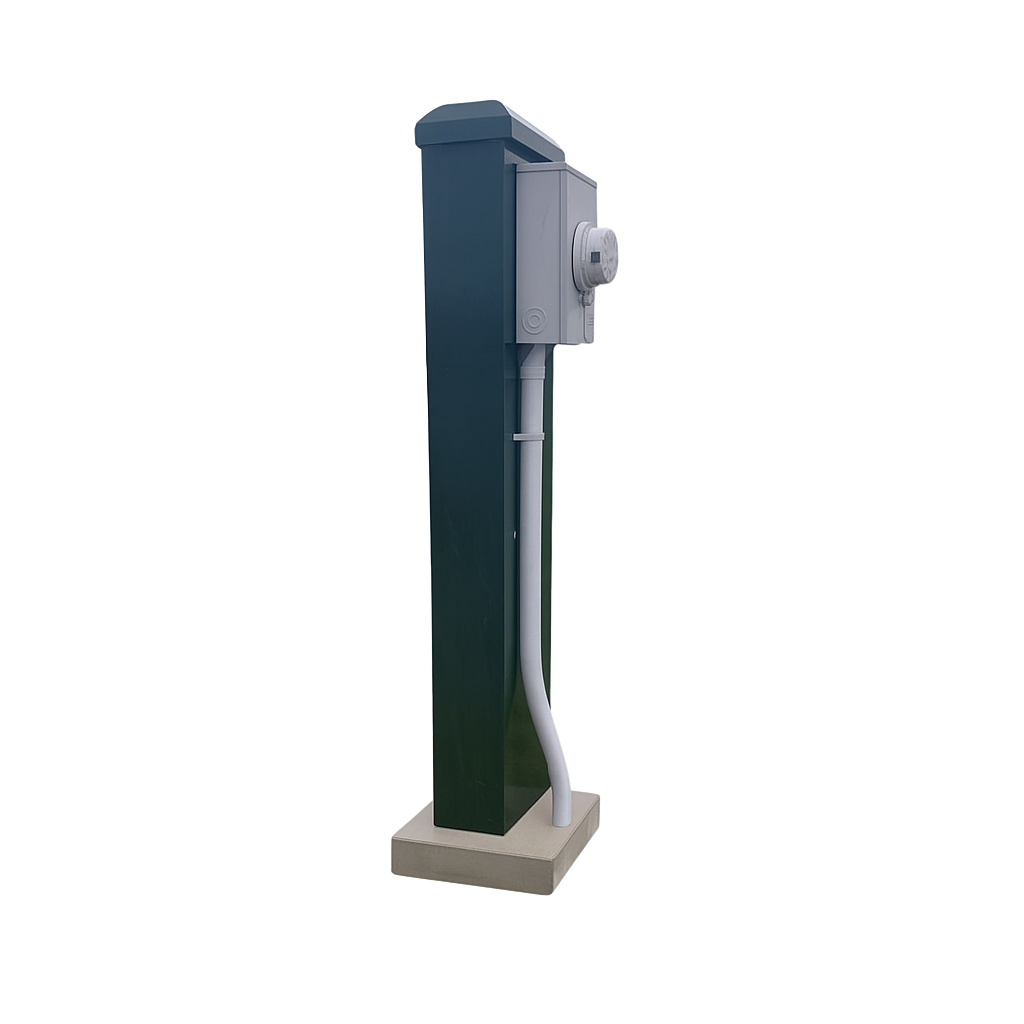

• Choice of meter bases to meet local Hydro Authority requirements. Meter mounted externally meets Hydro Authority meter height requirement.

• Delivered “Ready to Install” with a Service Entrance rating, 22kA I.C. series rating, and ESA approval.

• Hardware to fasten pedestal to pre-cast concrete base is included with every pedestal (base available from many pre-cast concrete manufacturers).

CONSTRUCTION

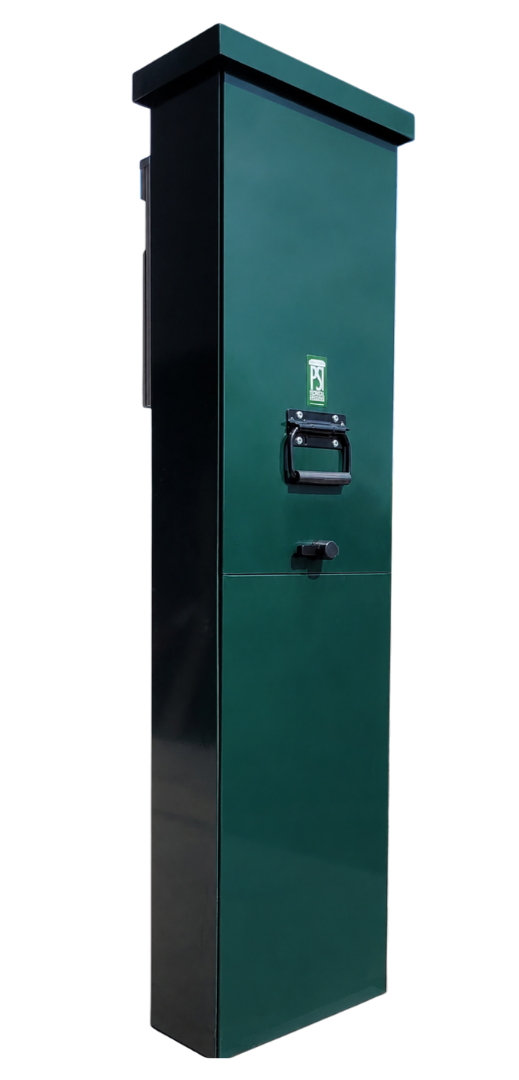

Constructed from heavy-gauge aluminum.

• Electrostatic powder coated “Equipment Green” as standard.

• All doors built to prevent weather intrusion without the means of a rubber gasket.

• Concealed Ventilation under lid to prevent condensation build-up.

• Stainless Steel fasteners used to mount all internal and external components.

Can be designed to include timers, contractors, photocells etc. for any type of motor and lighting control.

• Custom colours available

• Also available in Galvanized or Stainless Steel construction
